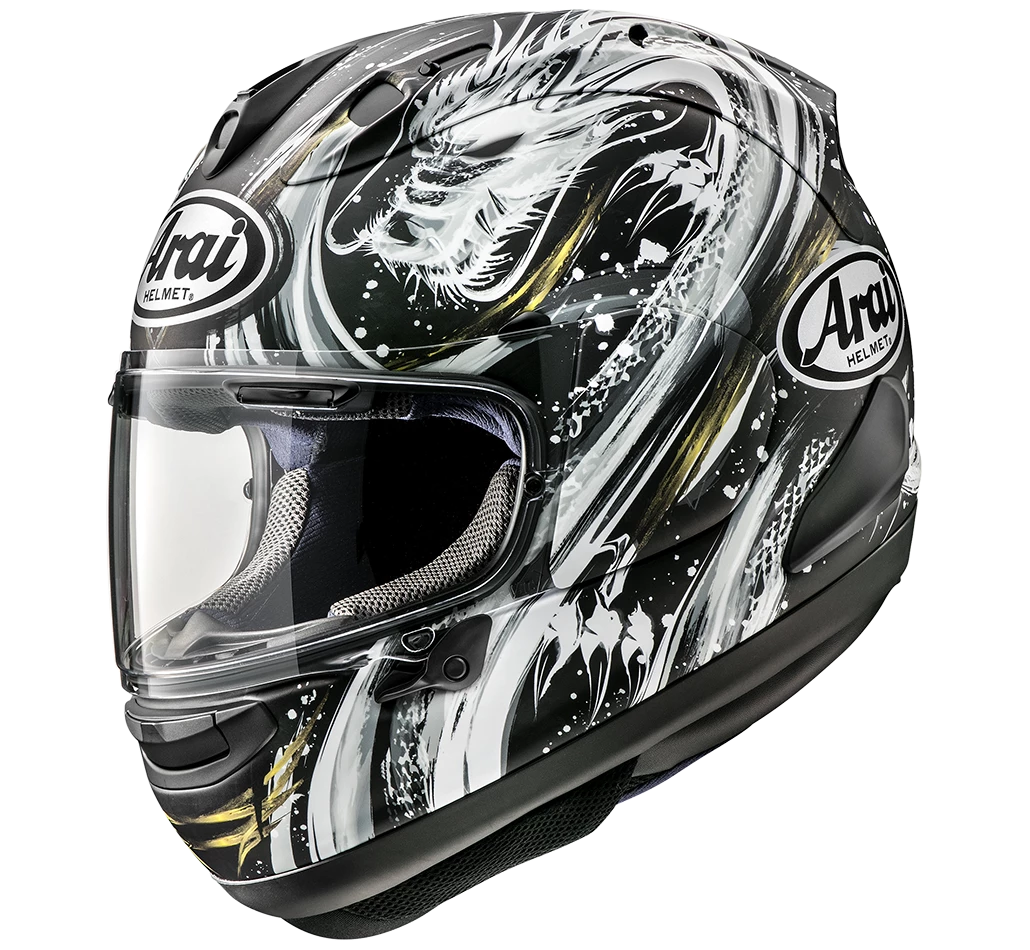

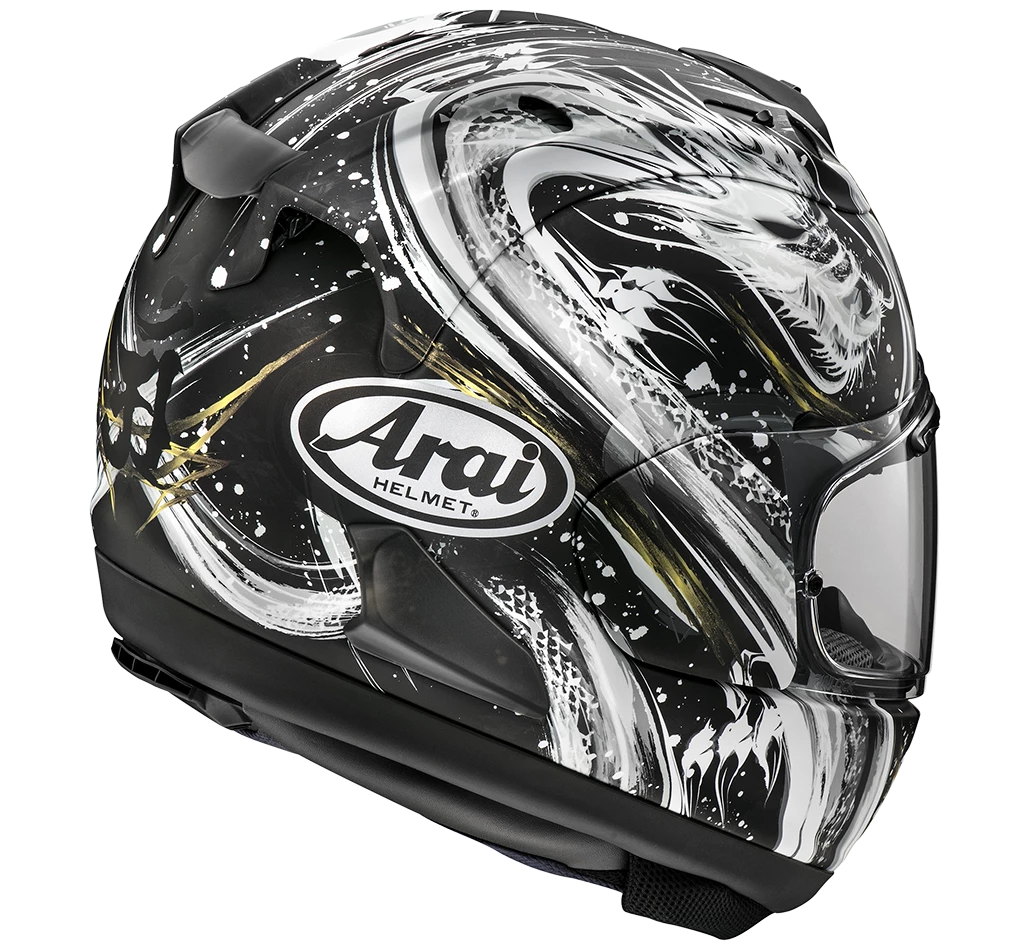

Arai RX-7V Kiyonari Black/Silver Helmet

The RX-7V represents the summit of Arai’s knowledge, experience and know-how in helmet technology. With a completely new PB-SNC² outer shell, the revolutionary VAS (“Variable Axis System”) visor system and a significant increased smoother area around the temples, the RX-7V offers the new benchmark in the premium helmet segment. From the also new anti-microbial material liner with an even slimmer frame, to the new ducts, improved diffuser and the integrated Air Channels, every part shows the attention to detail that is so typical for Arai. Arai has continually improved the “glancing off” performance by learning from real scenarios. Thanks to the new stronger and smoother shell and VAS, the RX-7V is closer to the ideal helmet shape than ever. With VAS, the visor mounting position is lowered 24mm in pursuit of the ideal smoother shape that increases the ability of glancing off energy. As a result, this has made it possible for the shell to be completely smooth above the test line of the Snell standard.

Features:

General:

Outer shell PB-SNC2
Variable Axis System (VAS)
Double-D ring device
Ventilation:

Free Flow System (FFS)
Eyeport air channel
Front ventilation:

Center top vent – intake
Diffuser system
Brow vents extended to temple area
Three position chin vent
Rear ventilation:

Neck exhaust vent
Side exhausts
Aerodynamics:

Pull Down Chin Spoiler
Patented Air Wing® adjustable
Visor:

VAS Max Vision Visor with De-Mist option
New Shield Latch Lever
Interior:

Antimicrobial Liner material
Replaceable Cheek Pads
Replaceable Interior
Replaceable Chinstrap covers
Replaceable Neckroll
Speaker pockets
Facial Contour System (FCS)
5mm ’’Peel Away’’ Cheek pads
5mm ’’Peel Away’’ Temple pad
Thin centre pad for more room in front area
Comfort:

Emergency Release System (ERS)
Breath guard
Chin Curtain
Approval:

ECE 22-05
SNELL M2010/2015
Technologies:

PB SNC2 Shell: Peripherally Belted Structural Net Composite Arai’s proprietary (super fibre belt) Peripheral Belt, borrowed from our F-1 technology, maximizes shell strength and flexibility while maintaining low weight. Positioned across the top of the eye port, this band allows the use of a thinner EPS liner which greatly enhances the upward field of view – especially appreciated in a full racing tuck! The Structural Net Composite adds a physical bond to the resin bond of the many layers of fibres and reinforcing materials within the shell.

Chin Curtain: Attached to the bottom of the helmet, the new chin curtain helps to further accentuate the Egg-shape form. The curtain simultaneously blocks air intrusion from turbulent air below and increases negative pressure to enhance the exhaust function of FFS by drawing more air from the mouth area. The improved airflow reduces noise even further.

Antimicrobial Liner material: The fully removable interior liner system has been improved with new Anti-microbial Liner material, which helps maintain neutral acidity levels close to human skin and antibacterial consumption. With the aim of a softer, deeper and even more comfortable fit we developed a new softer liner frame material. The new liner also has adjustable temple padding that allows for a customized fit.

Full Support Interior: FCS Cheek pad with ear pocket recess for speakers and 5mm peel away layer for added room if needed. Larger space in mouth area for a more open feeling. Smaller neck exhaust nozzle without reduced exhaust efficiency. New emergency release tab positioned at the end of the release strap for easier access by rescue staff. Improved comfort performance with better fitting while being easier to put on and off.
